Product information "HDANIEE CE-25 Monocular Thermal"

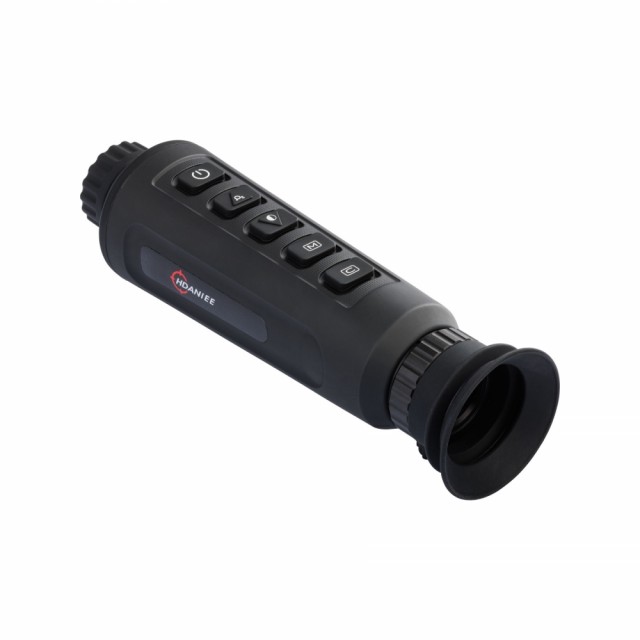

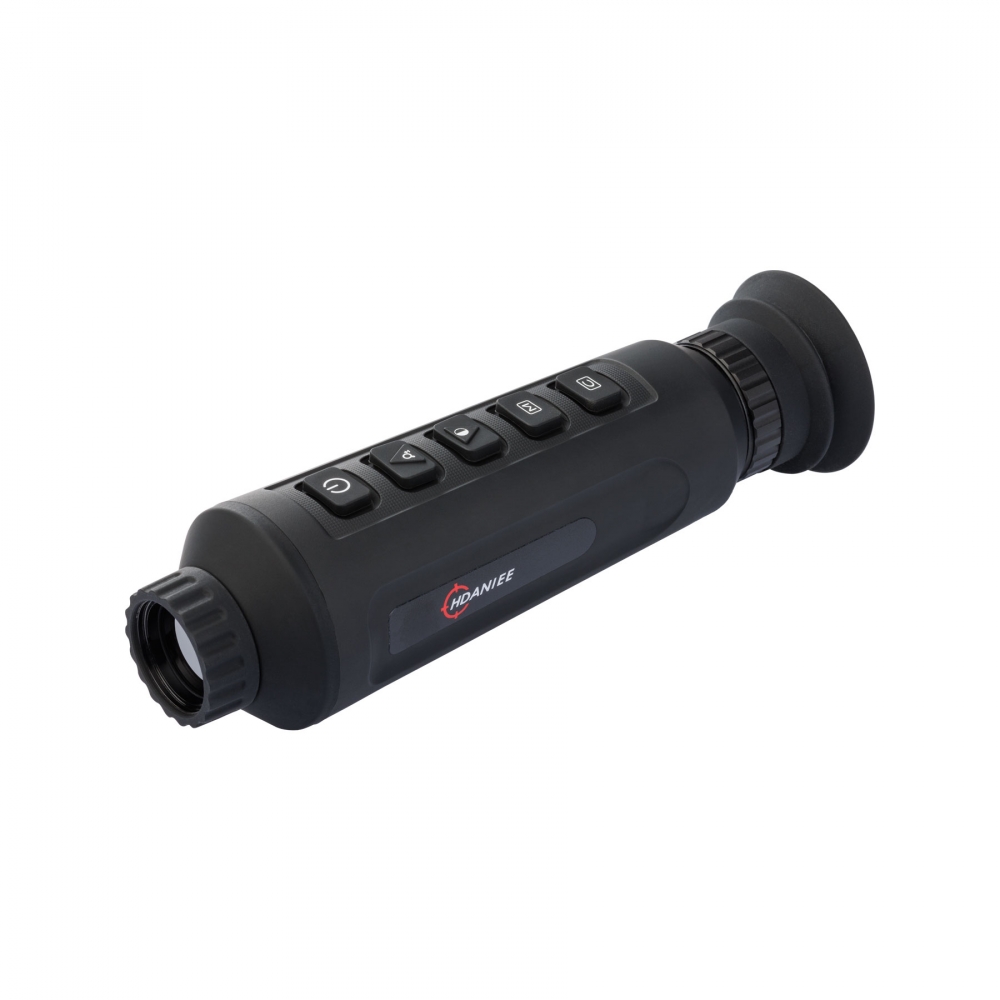

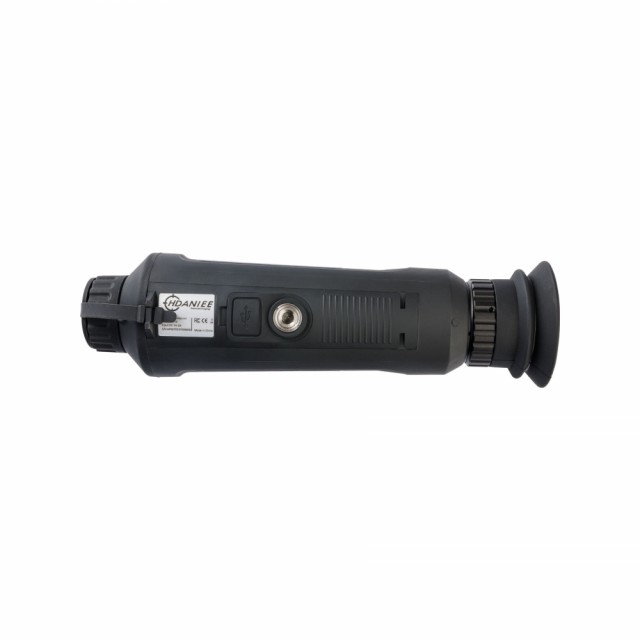

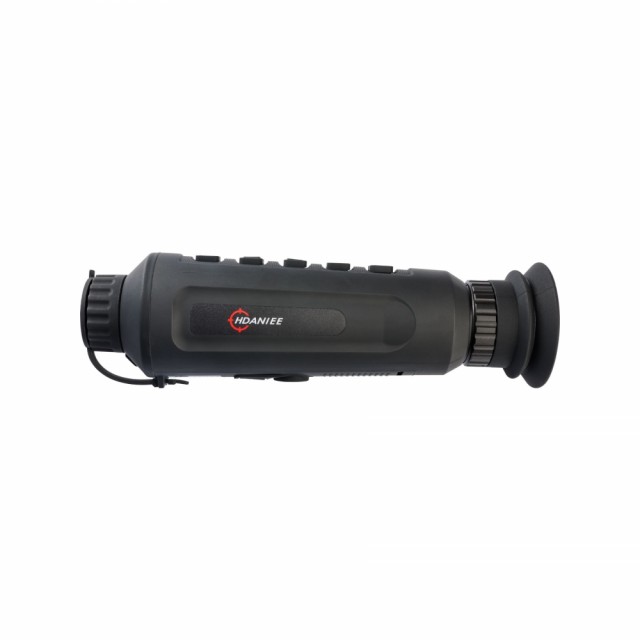

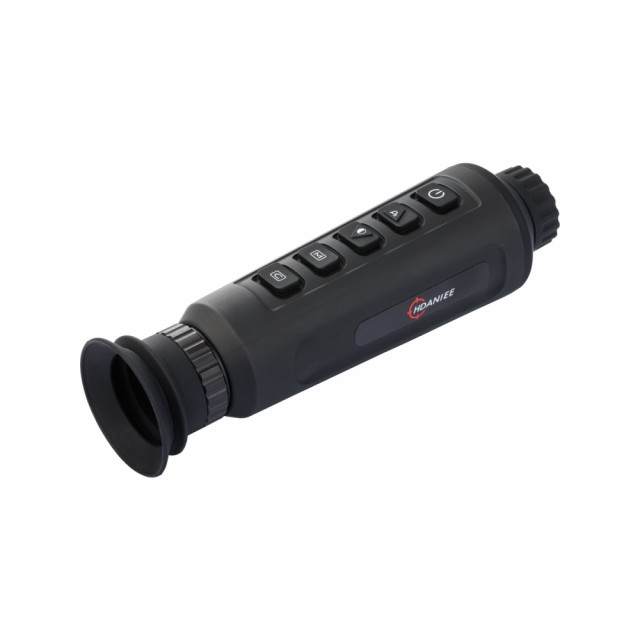

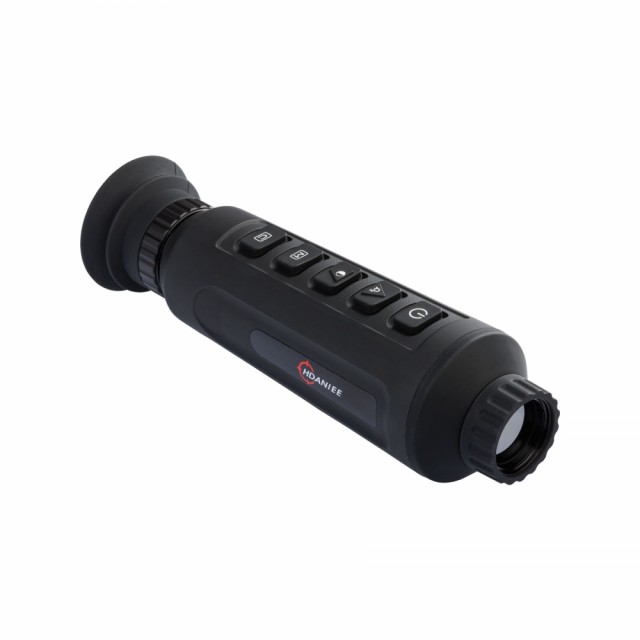

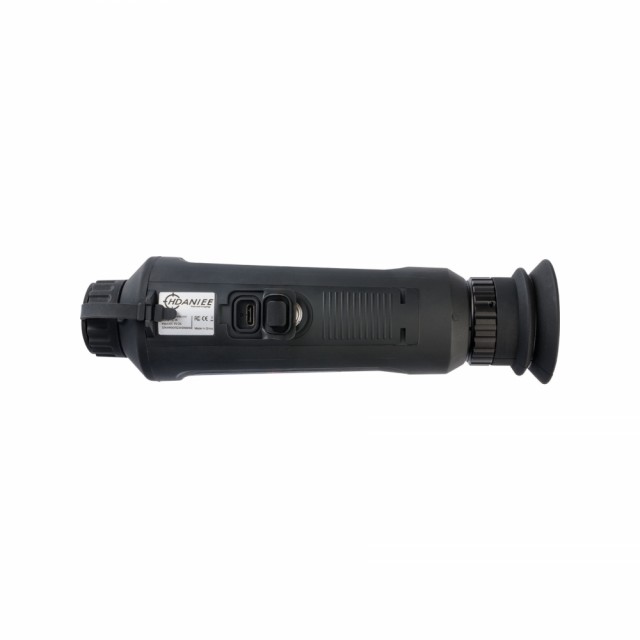

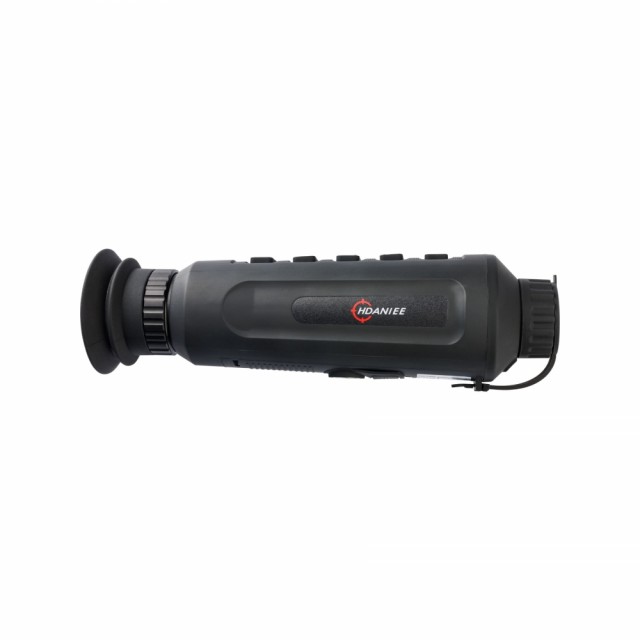

HDANIEE CE-25 monocular thermal imaging device
A reliable helper for applications such as observing game, search and rescue operations and for experiencing nature on hikes or trips.
Very easy to handle thanks to its low weight and simple menu navigation.
Quickly ready for use and a useful helper with its automatic target tracking.
The sensor frame rate of 50 fps ensures clear, high-quality images.
With its digital zoom (1-2-4-8x magnification), even distant objects can be observed very well.
The CE-25 also offers the option of taking photos and videos. The recordings can be easily transferred to other devices via the USB-C cable.
Recordings can also be transferred to external screens using the CVBS video output function (with the supplied USB-C cable).
Technical data CE-25
Lens
Focal Length 25 mm
Field of View Detection 1360 m
Identification 616 m
Detector
Detector Type Uncooled VOx Detector
Spectral Range 8 ~ 14 μm
Resolution, Pixel Pitch 384 x 288 px, 12 μm
Field of View (H x V) 10.5° x 8.6°
Noise Equivalent Temperature Difference (NETD) <50 mK @ 25°C, F#1.0
Frame Rate of the Detector ≤ 50 fps
Display
Screen 0.39” OLED,1024 x 768 px,50 Hz
Brightness / Contrast 5 levels of adjustment
Digital Zoom 1x, 2x, 4x ,8x
Hotspot Tracking Supported
Colour palette Black hot, White hot, Red hot, Fusion, Bird watching, sky
Reticle Supported
Functions
Hotspot Network Supported
Screen Recording / Screenshot Supported
CVBS Output Supported
Power
External Power Type-C, 5V-2A
Power 0.85 W (CVBS output off)
Battery Type / Endurance Rechargeable lithium battery, ≥8h
Other Attributes
Storage Built-in storage module (16GB)
Protection Level IP67
Dimensions / Weight 58 x 62 x 215 mm / 400 g
