HDANIEE CE-19 Monocular Thermal

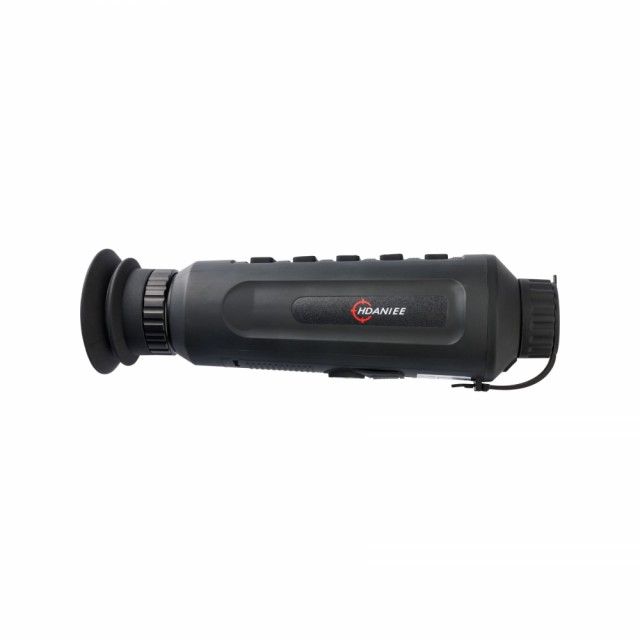

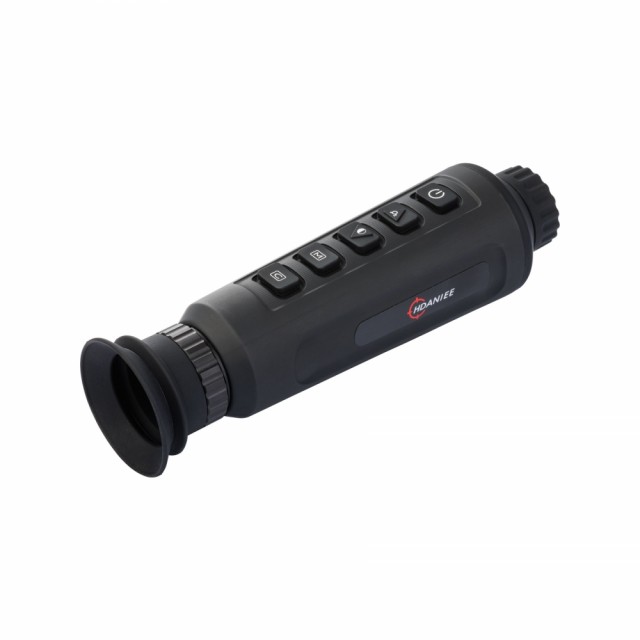

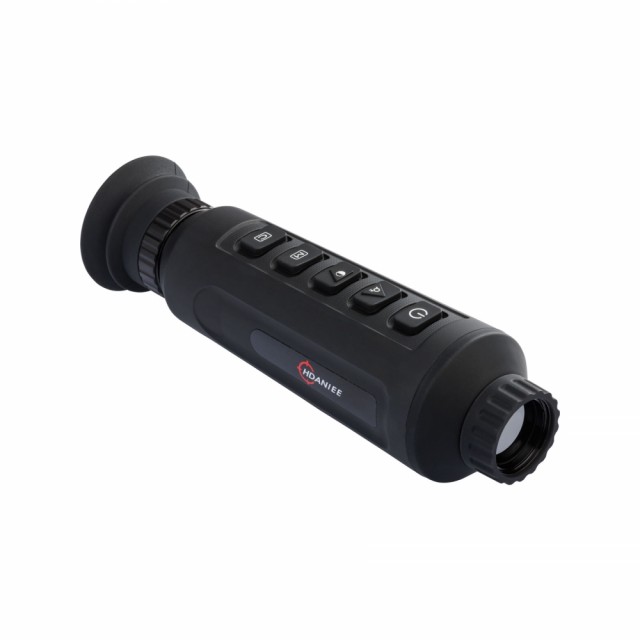

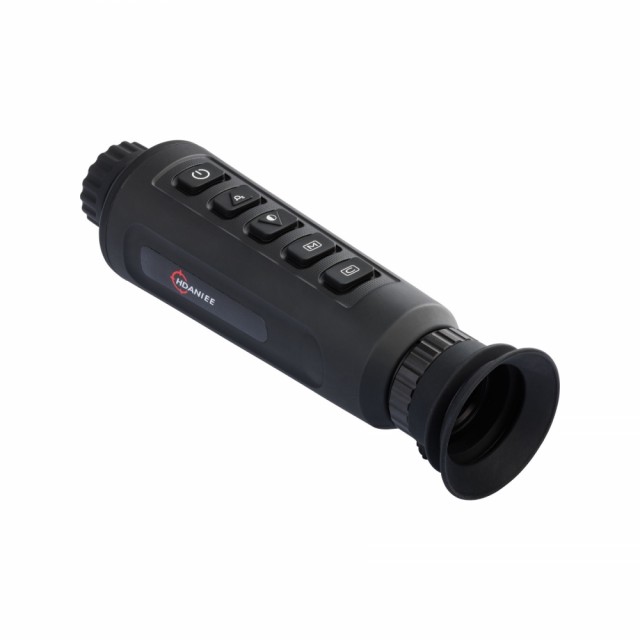

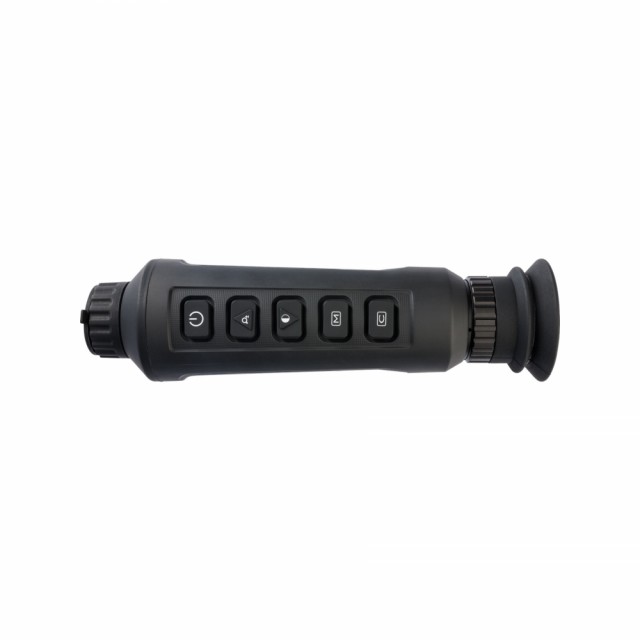

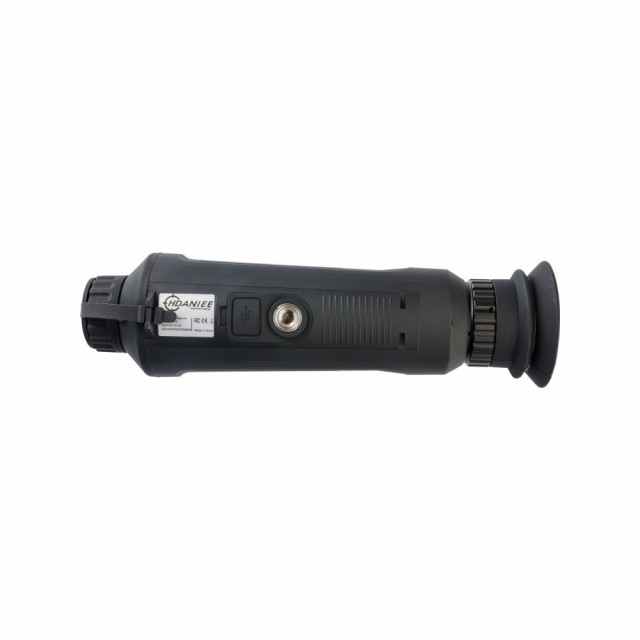

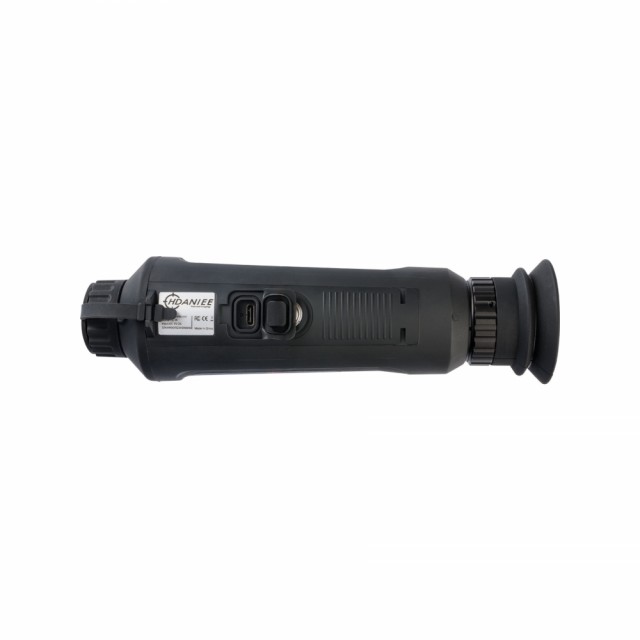

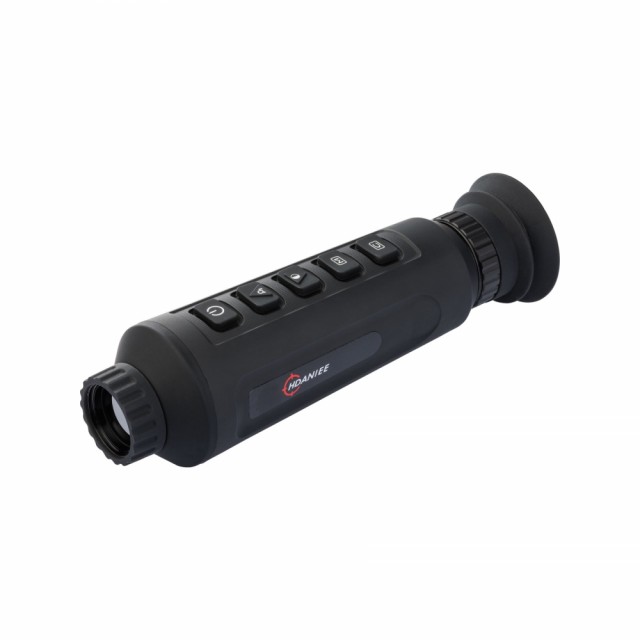

HDANIEE CE-19 monocular thermal imaging device
A reliable helper for applications such as observing game, search and rescue operations and for experiencing nature while hiking or travelling.
Very easy to handle thanks to its low weight and simple menu navigation.
Quickly ready for use and a useful helper with its automatic target tracking.
The sensor frame rate of 50 fps ensures clear, high-quality images.
With its digital zoom (1-2-4-8x magnification), even distant objects can be observed very well.
The CE-19 also offers the option of taking photos and videos. The recordings can be easily transferred to other devices via the USB-C cable.
Recordings can also be transferred to external screens using the CVBS video output function (with the supplied USB-C cable).

CE-19
Lens
Focal length 19 mm
Field of view detection 980m
Identification 476m
Detector
Detector type Uncooled vanadium oxide detector
Spectral range 8~14 μ m
Resolution, pixel size 384 x 288 pixels, 12 μm
Field of view (H*V) 13.8° x 10.4°
Noise equivalent temperature difference (NETD) <50 mK at 25 °C, F#1.0
Frame rate of the detector ≤50fps
Display
Screen 0.39-inch OLED, 1024 x 768 pixels, 50 Hz
Brightness Contrast 5 adjustment levels
Digital zoom X1,X2,X4,X8
Hotspot tracking supported
Pseudo colour Black Hot, White Hot, Red Hot, Fusion, Bird-Watching
Crosshair Supported

Crosshair functions
Hotspot network Supported
Screen recording/screenshot Supported
Laser positioning Supported
CVBS output Supported
Power
External power type-C, 5V 1A
Power 0.85W (CVBS CVBS output off)
Battery type/endurance Rechargeable lithium battery, ≥8H
Storage Integrated memory module (16G)
Protection level IP67
Dimensions (mm)/Weight 58*62*215 / 400g
